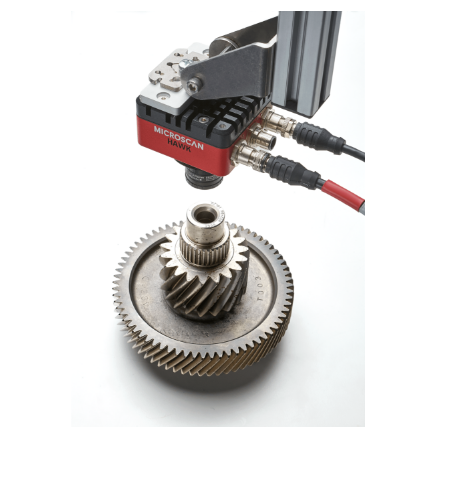

    迈思肯Microscan HAWK MV-4000 智能相机
    迈思肯Microscan HAWK MV-4000 智能相机
  • 产品说明
  • 主要特征
  • 技术指标
  • 适用行业
  • 资源下载

    • HAWK MV-4000坚固的外壳内装有令人惊叹的处理能力和优异的灵活性。 这款智能相机采用FPGA，将上一代的处理能力提高了数倍，实现了实时触发响应。拥有领先的算法，HAWK MV-4000可以成为各行业实现代码阅读，代码验证，检查，引导定位，测量或各种组合功能的理想工具。

    HAWK MV-4000的以图像为中心的用户界面和拖放式编程使设置变得简单。 普通的操作员或技术人员会喜欢直观的AutoVISION用户界面（UI），可以使用读取，验证和视觉工具随时读取。机器视觉方面的专家将可以访问另一个名为FrontRunner的界面，以获得HAWK MV-4000的全部潜力。

    拥有几乎达到基于PC系统速度的处理能力，这个智能相机可以真正实现以一当十。 IVision的工程师们把它称为基于PC的相机和市场上普通的智能相机之间的“黄金中心”。 使用HAWK MV-4000，不需要外部处理即可达到每分钟4,000至14,000个零件的检查率。



    迈思肯Microscan HAWK MV-4000 智能相机型号表
    Part NumberDescription
    8011-0000-0100HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV SENSOR
    8011-0000-0101HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV
    8011-0000-0102HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VS
    8011-0000-0103HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VERIF/OCV
    8011-0000-0104HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VS+VERIF/OCV
    1.3 MP Mono
    8012-0000-0100HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV SENSOR
    8012-0000-0101HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV
    8012-0000-0102HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VS
    8012-0000-0103HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VERIF/OCV
    8012-0000-0104HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VS+VERIF/OCV
    2.0 MP Mono
    8013-0000-0100HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV SENSOR
    8013-0000-0101HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV
    8013-0000-0102HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VS
    8013-0000-0103HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VERIF/OCV
    8013-0000-0104HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VS+VERIF/OCV
    5.0 MP Mono
    8014-0000-0100HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV SENSOR
    8014-0000-0101HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV
    8014-0000-0102HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VS
    8014-0000-0103HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VERIF/OCV
    8014-0000-0104HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VS+VERIF/OCV
    0.3 MP Color
    8015-0000-0100HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV SENSOR
    8015-0000-0101HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV
    8015-0000-0102HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VS
    8015-0000-0103HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VERIF/OCV
    8015-0000-0104HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VS+VERIF/OCV
    1.3 MP Color
    8016-0000-0100HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV SENSOR
    8016-0000-0101HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV
    8016-0000-0102HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VS
    8016-0000-0103HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VERIF/OCV
    8016-0000-0104HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VS+VERIF/OCV
    2.0 MP Color
    8017-0000-0100HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV SENSOR
    8017-0000-0101HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV
    8017-0000-0102HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VS
    8017-0000-0103HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VERIF/OCV
    8017-0000-0104HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VS+VERIF/OCV
    5.0 MP Color
    8018-0000-0100HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV SENSOR
    8018-0000-0101HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV
    8018-0000-0102HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VS
    8018-0000-0103HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VERIF/OCV
    8018-0000-0104HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VS+VERIF/OCV




    HAWK 4000 LENSES AND LENS CAPS
    Standard Resolution for 2/3" Sensors - (General Inspection, Reading, Some Verification)
    98-9000167-01LENS, C-MOUNT, 6MM, STANDARD RES, 2/3" SENSOR
    98-9000168-01LENS, C-MOUNT, 9MM, STANDARD RES, 2/3" SENSOR
    98-9000169-01LENS, C-MOUNT, 12.5MM, STANDARD RES, 2/3" SENSOR
    98-9000170-01LENS, C-MOUNT, 16MM, STANDARD RES, 2/3" SENSOR
    98-9000171-01LENS, C-MOUNT, 25MM, STANDARD RES, 2/3" SENSOR
    98-9000172-01LENS, C-MOUNT, 35MM, STANDARD RES, 2/3" SENSOR
    High Resolution for 2/3" Sensors - (Gauging, Verification)
    98-9000192-01LENS, C-MOUNT, 6MM, HIGH RES, 2/3" SENSOR
    98-9000165-01LENS, C-MOUNT, 8MM, HIGH RES, 2/3" SENSOR
    98-9000166-01LENS, C-MOUNT, 12MM, HIGH RES, 2/3" SENSOR
    98-9000154-01LENS, C-MOUNT, 16MM, HIGH RES, 2/3" SENSOR
    98-9000164-01LENS, C-MOUNT, 25MM, HIGH RES, 2/3" SENSOR
    98-9000163-01LENS, C-MOUNT, 35MM, HIGH RES, 2/3" SENSOR
    High Resolution for 1" Sensors - (All applications. Required for 1" 5 MP Sensor)
    98-9000174-01LENS, C-MOUNT, 12.5MM, HIGH RES, 1" SENSOR
    98-9000175-01LENS, C-MOUNT, 16MM, HIGH RES, 1" SENSOR
    98-9000176-01LENS, C-MOUNT, 25MM, HIGH RES, 1" SENSOR
    98-9000177-01LENS, C-MOUNT, 35MM, HIGH RES, 1" SENSOR
    C-Mount Liquid Lens
    98-9000179-01LENS, LIQUID, C-MOUNT, F2.8/16MM, 2/3" SENSOR, I2C INTERFACE
    98-9000178-01LENS, LIQUID, C-MOUNT, F4/25MM, 2/3" SENSOR, I2C INTERFACE
    Lens Accessories
    98-9000155-01IP67 LENS COVER FOR HAWK 4000, 50MM LENGTH
    98-9000156-01IP67 LENS COVER HAWK 4000, 70MM LENGTH
    98-CO206Lens Extension Tube Set, 0.5 mm, 1 mm, 5 mm, 10 mm, 20 mm, 40 mm




    HAWK 4000 CABLES, LIGHT CONTROL CABLE AND POWER SUPPLY
    HAWK 4000 X-CODE Ethernet Port Cables
    61-9000134-01CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 1 METER
    61-9000134-02CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 3 METER
    61-9000134-03CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 5 METER
    HAWK 4000 VGA/USB Port Connector Cables
    61-9000143-01 CABLE, HAWK 4000 M12 TO USB FEMALE, 1 METER
    61-9000147-01 CABLE, HAWK 4000 M12 TO VGA & USB, 1 METER
    HAWK 4000 Digital IO Port Connector Cables
    61-9000132-01CABLE, ADAPTER, HAWK 4000 TO ACCESSORY CABLES/POWER SUPPLY (Supplied with camera)
    61-9000151-01CABLE, HAWK 4000 M12 TO FLYING LEADS, 3 METER (NO ADAPTOR NEEDED)
    QX-1 Interface Cables and Accessories
    61-000162-02 QX CORDSET, HAWK 4000 ADAPTOR TO QX-1 M12 PLUG (SCREW-ON), 1 METER
    61-000148-02 QX CORDSET, HAWK 4000 ADAPTOR TO QX-1 M12 PLUG (SCREW-ON), 3 METER
    98-000103-02 QX-1 INTERFACE DEVICE
    99-000020-02 QX Photo Sensor, M12 4-Pin Plug, NPN, Dark On, 2 meter
    99-000020-01 QX Photo Sensor, M12 4-Pin Plug, NPN, Dark Off, 2 meter
    20-610024-01 Trigger Connector, 4-Pin Plug (Screw Terminal, Field-Wireable) (Self-Wiring)
    SMART LIGHT CONTROL CABLES
    61-9000135-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, POWER, 1 METER
    61-9000136-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, ON/OFF, 1 METER
    61-9000137-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, STROBE, 1 METER
    61-000204-01 CABLE, QX-1 TO SMART LIGHT, CONTINUOUS POWER
    61-000207-01CABLE, QX-1 TO SMART LIGHT, ON/OFF
    61-000218-01* CABLE, QX-1 TO SMART LIGHT, STROBE
    Power Supply
    97-000012-01 Power Supply, 100-240VAC, +24VDC, M12 12-pin Socket




    HAWK 4000 AND SMART LIGHT MOUNTS
    Standard Mounts
    TBDUNIVERSAL MOUNT, HAWK 4000
    98-9000054-01 APG MOUNT, HAWK 4000 (REQUIRES UNIVERSAL MOUNT)
    Smart Light/HAWK 4000 Mounting Kits
    98-9000120-01KIT, BRACKET, MAX 300 TO HAWK 4000
    98-9000121-01KIT, BRACKET, DOAL TO HAWK 4000
    98-9000122-01KIT, BRACKET, RING 60/70 TO HAWK 4000
    98-9000123-01KIT, BRACKET, RING 100 TO HAWK 4000
    98-9000137-01KIT, SMART SERIES PHARMALITE, ARCHERFISH




    LICENSING
    HAWK 4000 License Upgrades
    LIC-0700-003*LICENSE,MACHINE VISION,AUTOVISION
    LIC-0700-006*LICENSE,MACHINE VISION,VISIONSCAPE
    LIC-0700-009*LICENSE,MACHINE VISION,VERIFICATION/OCV
    LIC-0700-011*LICENSE,MACHINE VISION,AUTOVISION SENSOR
    LIC-0700-325*LICENSE,MACHINE VISION,MACHINE VISION UNLOCK




    Camera Kits - with License, Lens, IP Cover and Mount
    0.3 MP, Standard Lens
    8211-1090-0102HAWK MV-4000-03, AV+VS, 9MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8111-1160-0102HAWK MV-4000-03, AV+VS, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    1.3 MP, Standard Lens
    8112-1120-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 12.5MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8112-1250-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 25MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    1.3 MP, High Res Lens
    8212-2160-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 16MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8212-2250-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 25MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8212-2350-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 35MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    2.0 MP, Standard Lens
    8113-1160-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8113-1350-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 35MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    2.0 MP, High Res Lens
    8213-2160-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 16MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8213-2250-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 25MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8213-2350-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 35MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    2.0 Color, Standard Lens
    8117-1090-0102HAWK MV-4000-20C, AV+VS, 9MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8117-1160-0102HAWK MV-4000-20C, AV+VS, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8117-1350-0102HAWK MV-4000-20C, AV+VS, 35MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    5.0 MP, 1" Lens
    8014-3160-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 16MM 1" LENS, NO COVER, UNIVERSAL MOUNT
    8214-3250-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 25MM 1" LENS, IP COVER, UNIVERSAL MOUNT
    8214-3350-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 35MM 1" LENS, IP COVER, UNIVERSAL MOUNT


    型号

    HAWK MV-4000-03

    HAWK MV-4000-03C

    HAWK MV-4000-13

    HAWK MV-4000-13C

    HAWK MV-4000-20

    HAWK MV-4000-20C

    HAWK MV-4000-50

    HAWK MV-4000-50C


    传感器

    品牌和型号

    安森美半导体 – Python 系列 (NOIP1SN 或 NOIP1SE)

    安森美半导体 – Python 系列 (NOIP1SN 或 NOIP1SE)

    类型

    CMOS

    芯片尺寸

    1/4”-Type

    1/2”-Type

    2/3”-Type

    1”-Type

    格式

    黑白

    彩色

    黑白

    彩色

    黑白

    彩色

    黑白

    彩色

    分辨率 (H x V)

    640 x 480

    1280 x 1024

    1920 x 1200

    2592 x 2048

    有效帧率

    最高 240 FPS

    最高 120 FPS

    最高 75 FPS

    最高 32 FPS

    最高 42 FPS

    最高 20 FPS

    最高 21 FPS

    最高8.5 FPS

    像素尺寸 (H x V)

    4.8 μm x 4.8 μm

    增益范围

    0 至 19.4 dB

    快门速度

    50 μsec 至 4 sec

    触发器响应

    外部触发器输出延迟 = 10μs。 抖动= 1 - 2μs。


    处理器，内存及存储

    处理器

    双核

    内存

    2GB RAM

    存储

    32GB


    接口

    网络

    千兆以太网

    HMI

    VGA 和 USB 2.0 (连接键盘和鼠标)

    数字 I/O

    3个光耦输入（带增量旋转编码器支持），1个专用光耦触发，3个外部选通输出

    其他

    Varioptic Caspian 自动对焦镜头专用接口


    机械，电气，环保

    镜头类型

    C-Mount

    连接器

    M12 8针以太网插座; M12 12针插座，用于电源，数字I / O和LED照明强度控制; M12 12针插头用于VGA和USB

    重量

    460 g

    能量消耗

    450 mA @ 24VDC 或 10.8W (一般情况)



    迈思肯Microscan HAWK MV-4000 智能相机附件表



    This section contains information about system components as well as information to help you connect the HAWK MV-4000 Smart Camera. Specific information describes connectors, adapters, cables, pinouts, and signals.
    HAWK MV-4000 Smart Cameras (All cameras ship with an adapter cable.)
    0.3 Megapixel Mono
    8011-0000-0100HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION Sensor
    8011-0000-0101HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION
    8011-0000-0102HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Visionscape
    8011-0000-0103HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Verification / OCV
    8011-0000-0104HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Visionscape + Verification / OCV
    1.3 Megapixel Mono
    8012-0000-0100HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION Sensor
    8012-0000-0101HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION
    8012-0000-0102HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Visionscape
    8012-0000-0103HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Verification / OCV
    8012-0000-0104HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Visionscape + Verification / OCV
    2.0 Megapixel Mono
    8013-0000-0100HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION Sensor
    8013-0000-0101HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION
    8013-0000-0102HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Visionscape
    8013-0000-0103HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Verification / OCV
    8013-0000-0104HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Visionscape + Verification / OCV
    5.0 Megapixel Mono
    8014-0000-0100HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION Sensor
    8014-0000-0101HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION
    8014-0000-0102HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Visionscape
    8014-0000-0103HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Verification / OCV
    8014-0000-0104HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Visionscape + Verification / OCV
    0.3 Megapixel Color
    8015-0000-0100HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION Sensor
    8015-0000-0101HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION
    8015-0000-0102HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Visionscape
    8015-0000-0103HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Verification / OCV
    8015-0000-0104HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Visionscape + Verification / OCV
    1.3 Megapixel Color
    8016-0000-0100HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION Sensor
    8016-0000-0101HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION
    8016-0000-0102HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Visionscape
    8016-0000-0103HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Verification / OCV
    8016-0000-0104HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Visionscape + Verification / OCV
    2.0 Megapixel Color
    8017-0000-0100HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION Sensor
    8017-0000-0101HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION
    8017-0000-0102HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Visionscape
    8017-0000-0103HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Verification / OCV
    8017-0000-0104HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Visionscape + Verification / OCV
    5.0 Megapixel Color
    8018-0000-0100HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION Sensor
    8018-0000-0101HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION
    8018-0000-0102HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Visionscape
    8018-0000-0103HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Verification / OCV
    8018-0000-0104HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Visionscape + Verification / OCV
    HAWK MV-4000 Lenses and Lens Caps
    Standard Resolution for 2/3" Sensors (General Inspection, Reading, Some Verification)
    98-9000167-01Lens, C-Mount, 6 mm, Standard Resolution, 2/3" Sensor
    98-9000168-01Lens, C-Mount, 9 mm, Standard Resolution, 2/3" Sensor
    98-9000169-01Lens, C-Mount, 12.5 mm, Standard Resolution, 2/3" Sensor
    98-9000170-01Lens, C-Mount, 16 mm, Standard Resolution, 2/3" Sensor
    98-9000171-01Lens, C-Mount, 25 mm, Standard Resolution, 2/3" Sensor
    98-9000172-01Lens, C-Mount, 35 mm, Standard Resolution, 2/3" Sensor
    High Resolution for 2/3" Sensors (Gauging, Verification)
    98-9000192-01Lens, C-Mount, 6 mm, High Resolution, 2/3" Sensor
    98-9000165-01Lens, C-Mount, 8 mm, High Resolution, 2/3" Sensor
    98-9000166-01Lens, C-Mount, 12 mm, High Resolution, 2/3" Sensor
    98-9000154-01Lens, C-Mount, 16 mm, High Resolution, 2/3" Sensor
    98-9000164-01Lens, C-Mount, 25 mm, High Resolution, 2/3" Sensor
    98-9000163-01Lens, C-Mount, 35 mm, High Resolution, 2/3" Sensor
    High Resolution for 1" Sensors (All applications. Required for 1" 5 Megapixel Sensor)
    98-9000174-01Lens, C-Mount, 12.5 mm, High Resolution, 1" Sensor
    98-9000175-01Lens, C-Mount, 16 mm, High Resolution, 1" Sensor
    98-9000176-01Lens, C-Mount, 25 mm, High Resolution, 1" Sensor
    98-9000177-01Lens, C-Mount, 35 mm, High Resolution, 1" Sensor
    C-Mount Liquid Lens
    98-9000179-01Lens, Liquid, C-Mount, F2.8/16 mm, 2/3" Sensor, I2C Interface
    98-9000178-01Lens, Liquid, C-Mount, F4/25 mm, 2/3" Sensor, I2C Interface
    Lens Accessories
    98-9000155-01IP67 Lens Cover for HAWK MV-4000, 50 mm Length
    98-9000156-01IP67 Lens Cover HAWK MV-4000, 70 mm Length
    98-CO206Lens Extension Tube Set, 0.5 mm, 1 mm, 5 mm, 10 mm, 20 mm, 40 mm
    HAWK MV-4000 Cables, Smart Series Illuminator Control Cable, and Power Supply
    HAWK MV-4000 X-CODE Ethernet Port Cables
    61-9000134-01Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 1 m
    61-9000134-02Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 3 m
    61-9000134-03Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 5 m
    HAWK MV-4000 VGA / USB Port Connector Cables
    61-9000143-01Cable, HAWK MV-4000 M12 to USB Socket, 1 m
    61-9000147-01Cable, HAWK MV-4000 M12 to VGA and USB, 1 m
    HAWK MV-4000 Digital I/O Port Connector Cables
    61-9000132-01Cable, Adapter, HAWK MV-4000 to Accessory Cables / Power Supply (Supplied with camera)
    61-9000151-01Cable, HAWK MV-4000 M12 to Flying Leads, 3 m (No Adapter Required)
    QX-1 Interface Cables and Accessories
    61-000162-02QX Cordset, HAWK MV-4000 Adapter to QX-1 M12 Plug (Screw-On), 1 m
    61-000148-02QX Cordset, HAWK MV-4000 Adapter to QX-1 M12 Plug (Screw-On), 3 m
    98-000103-02QX-1 Interface Device
    99-000020-02QX Photo Sensor, M12 4-Pin Plug, NPN, Dark On, 2 m
    99-000020-01QX Photo Sensor, M12 4-Pin Plug, NPN, Dark Off, 2 m
    20-610024-01Trigger Connector, 4-Pin Plug (Screw Terminal, Field-Wireable) (Self-Wiring)
    Smart Series Illuminator Control Cables
    61-9000135-01Y Cable, HAWK MV-4000 Adapter to Smart Series Illuminator and QX-1, Power, 1 m
    61-9000137-01Y Cable, HAWK MV-4000 Adapter to Smart Series Illuminator and QX-1, Strobe, 1 m
    61-000204-01Cable, QX-1 to Smart Series Illuminator, Continuous Power
    61-000218-01*Cable, QX-1 to Smart Series Illuminator, Strobe
    Power Supply
    97-000012-01Power Supply, 100-240VAC, +24VDC, M12 12-pin Socket
    HAWK MV-4000 and Smart Series Illuminator Mount
    Standard Mount
    98-9000054-01APG Mount, HAWK MV-4000 (Requires Universal Mount)
    Smart Series Illuminator / HAWK MV-4000 Mounting Kits
    98-9000120-01Kit, Bracket, MAX 300 to HAWK MV-4000
    98-9000121-01Kit, Bracket, DOAL to HAWK MV-4000
    98-9000122-01Kit, Bracket, Ring 60 / 70 to HAWK MV-4000
    98-9000123-01Kit, Bracket, Ring 100 to HAWK MV-4000
    98-9000137-01Kit, Smart Series Pharmalite, HAWK MV-4000
    Licensing
    HAWK MV-4000 License Upgrades
    LIC-0700-003*License, Machine Vision, AutoVISION
    LIC-0700-006*License, Machine Vision, Visionscape
    LIC-0700-009*License, Machine Vision,Verification / OCV
    LIC-0700-011*License, Machine Vision, AutoVISION Sensor
    LIC-0700-325*License, Machine Vision, Machine Vision Unlock
    Camera Kits with License, Lens, IP Cover, and Mount
    0.3 Megapixel, Standard Lens
    8211-1090-0102HAWK MV-4000-03, AutoVISION + Visionscape, 9 mm Standard Lens, IP Cover, Universal Mount
    8111-1160-0102HAWK MV-4000-03, AutoVISION + Visionscape, 16 mm Standard Lens, IP Cover, Universal Mount
    1.3 Megapixel, Standard Lens
    8112-1120-0104HAWK MV-4000-13, AutoVISION + Visionscape + Verification / OCV, 12.5 mm Std. Lens, IP Cover, Universal Mount
    8112-1250-0104HAWK MV-4000-13, AutoVISION + Visionscape + Verification / OCV, 25 mm Std. Lens, IP Cover, Universal Mount
    1.3 Megapixel, High Resolution Lens
    8212-2160-0104HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 16 mm High Res. Lens, IP Cover, Universal Mount
    8212-2250-0104HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 25 mm High Res. Lens, IP Cover, Universal Mount
    8212-2350-0104HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 35 mm High Res. Lens, IP Cover, Universal Mount
    2.0 Megapixel, Standard Lens
    8113-1160-0104HAWK MV-4000-20, AutoVISION + Visionscape + Verification / OCV, 16 mm Std. Lens, IP Cover, Universal Mount
    8113-1350-0104HAWK MV-4000-20, AutoVISION + Visionscape + Verification / OCV, 35 mm Std. Lens, IP Cover, Universal Mount
    2.0 Megapixel, High Resolution Lens
    8213-2160-0104HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 16 mm High Res. Lens, IP Cover, Universal Mount
    8213-2250-0104HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 25 mm High Res. Lens, IP Cover, Universal Mount
    8213-2350-0104HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 35 mm High Res. Lens, IP Cover, Universal Mount
    2.0 Color, Standard Lens
    8117-1090-0102HAWK MV-4000-20C, AutoVISION + Visionscape, 9 mm Standard Lens, IP Cover, Universal Mount
    8117-1160-0102HAWK MV-4000-20C, AutoVISION + Visionscape, 16 mm Standard Lens, IP Cover, Universal Mount
    8117-1350-0102HAWK MV-4000-20C, AutoVISION + Visionscape, 35 mm Standard Lens, IP Cover, Universal Mount
    5.0 Megapixel, 1" Lens
    8014-3160-0104HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 16 mm 1" Lens, No Cover, Universal Mount
    8214-3250-0104HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 25 mm 1" Lens, IP Cover, Universal Mount
    8214-3350-0104HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 35 mm 1" Lens, IP Cover, Universal Mount


    迈思肯Microscan HAWK MV-4000 智能相机应用



    汽车零件，电子行业，制造行业，模具行业等

    相关产品

    相关文章

  • 工业读码器和工业相机的区别是什么？2021-02-03
    • 44118太阳成城集团
